Haptic Test and Pattern Maker apk

Haptic Test and Pattern Maker apk Haptic Test and Pattern Maker is a vibration & haptic tool for Android. Test device effects, create one-shot or timed patterns, and use pattern/audio generators to support game and app haptics.

Haptic Test and Pattern Maker apk

Haptic is a handy tool to check how well your phone can vibrate, and to design your own vibration sequences. With Haptic, you can create vibration patterns for free—ranging from single, one-time rumbles to multi-step timing patterns and even vibration patterns that use amplitude (on supported devices). The app also includes tools to generate vibration data, such as a pattern generator and an audio-to-vibration converter.

Download Haptic, then choose the vibration pattern you want to use.

Key Features

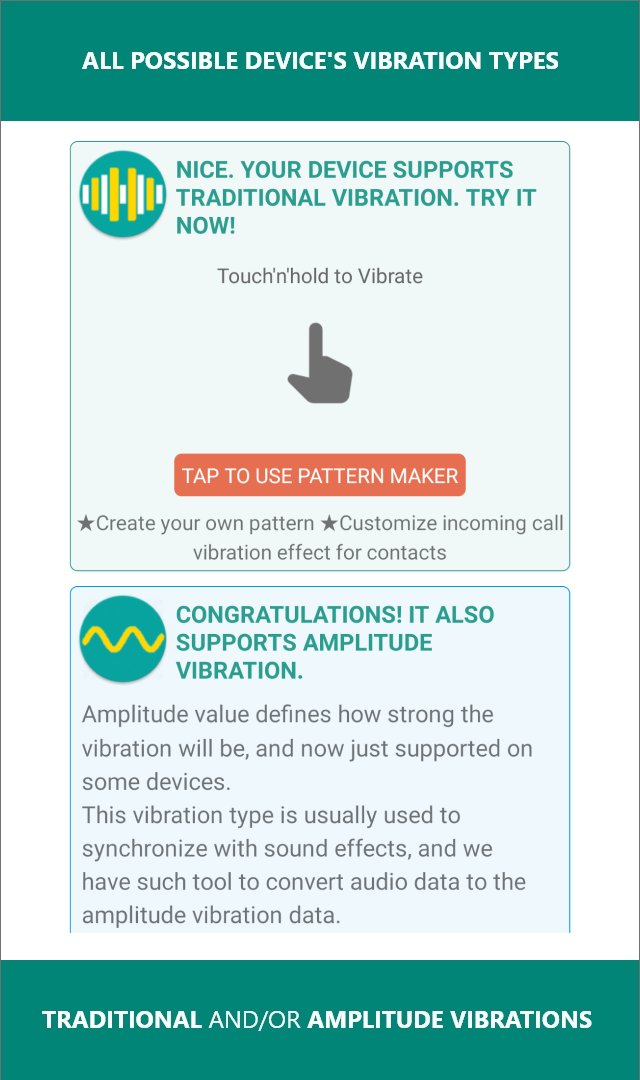

• Test your device’s vibration and haptic performance.
• When supported, test haptic feedback using amplitude control.
• Create a vibration pattern using the traditional vibration type.

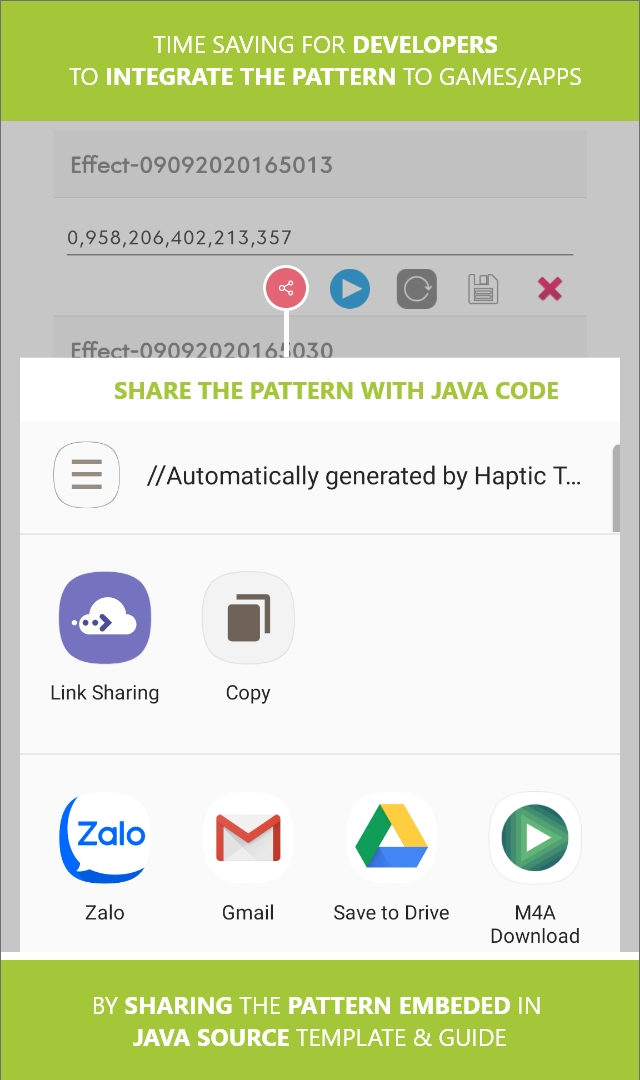

• Share patterns with developers using Java source code.
• Contact us if you want help converting audio into vibration data and syncing it for games or apps.
• Help programmers select the right haptic method for their projects, games, or apps.

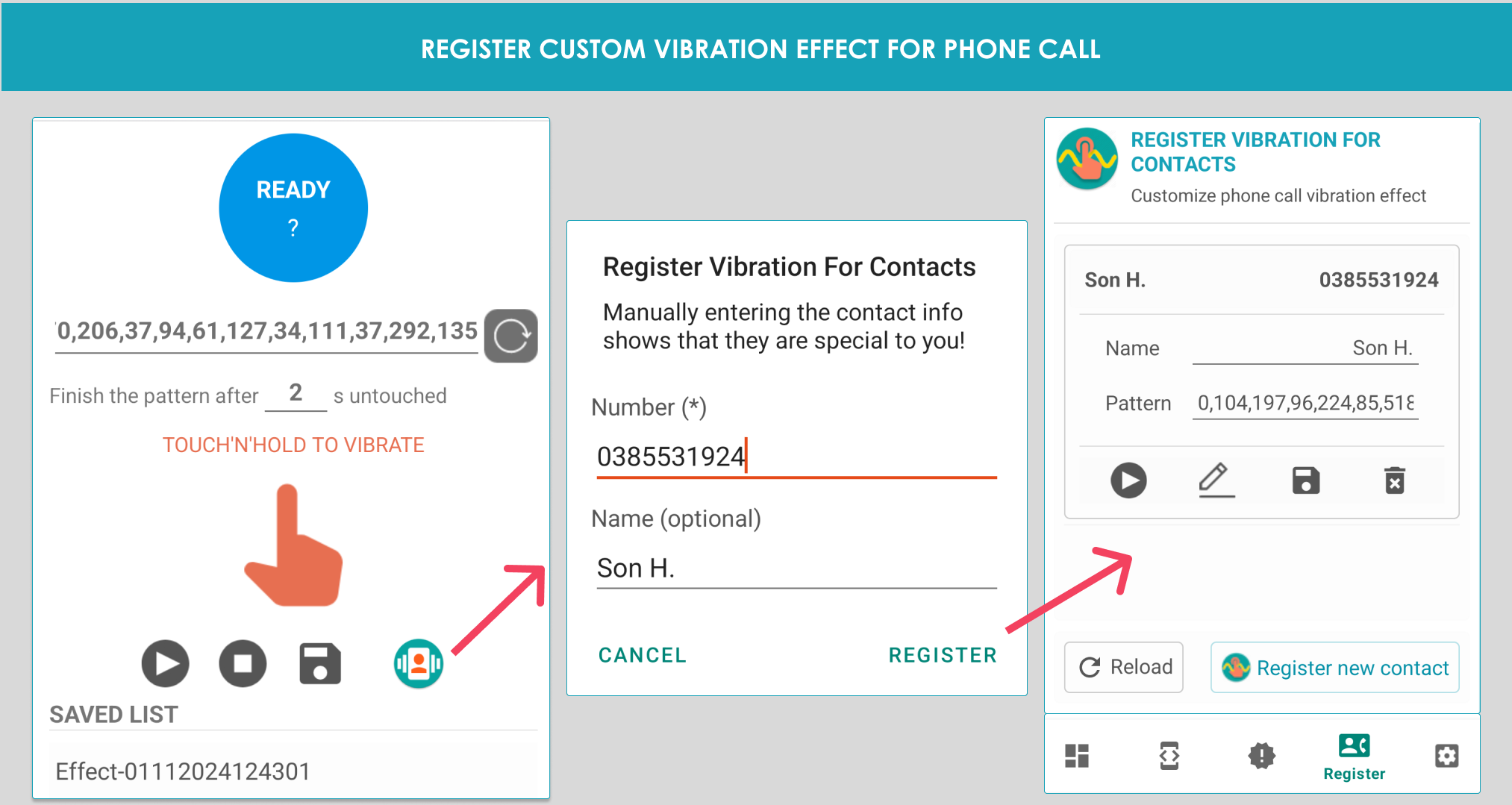

• Assign vibration patterns to a phone call contact using Pattern Maker (requires permission to read phone state and bind notifications).

Pattern Types and How They Work

ONE SHOT vibration

This makes the device vibrate for a fixed duration measured in milliseconds. It’s a single vibration event.

TIMINGS PATTERN

A timings pattern is an array of positive value pairs in the form {silent, vibration}. If you want no delay at the beginning, the pattern should start with 0.

Example: 0, 1000, 500, 1000, 300, 100

This means:

• Vibration starts immediately and lasts 1000 ms
• Then it becomes silent for 500 ms
• Vibrates again for 1000 ms
• Then silent for 300 ms
• Vibrates for 100 ms

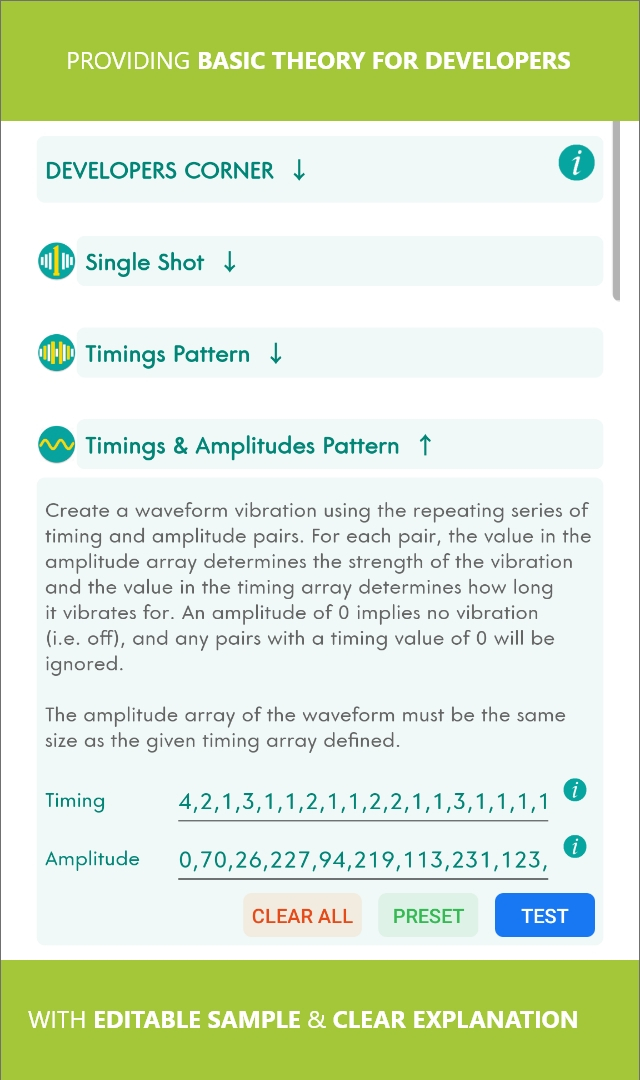

VIBRATION USING AMPLITUDE CONTROL

Amplitude controls how strong the vibration is. This feature is not available on every device. The amplitude value must be between 0 and 255—anything outside this range will be clipped.

The vibration result comes from combining Timing and Amplitude values.

• Each pair vibrates using the given amplitude for the specified time (in milliseconds).



• Make sure the total number of elements in Timings and Amplitude are the same.

Example:

• Timings: 10, 100, 50, 100, 300, 100
• Amplitude: 150, 10, 50, 100, 255, 10

This creates 6 continuous vibration steps, each with its own timing and amplitude.

Vibration Data Generator Tools

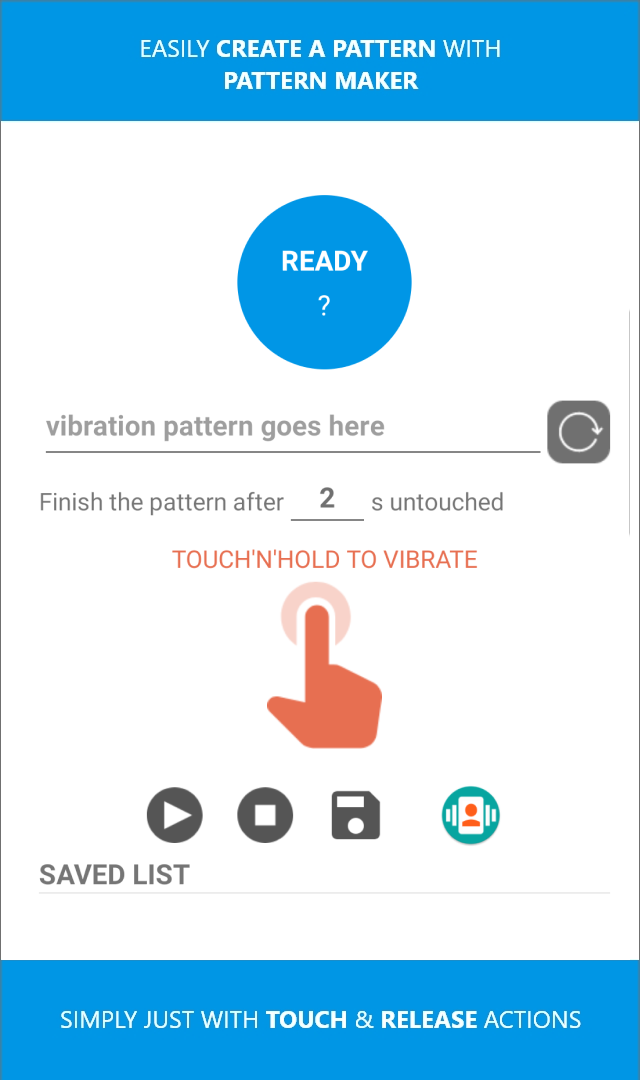

• Pattern Maker: Create the traditional vibration pattern (based on timings, using the app’s default highest amplitude). This tool is already included in the app.

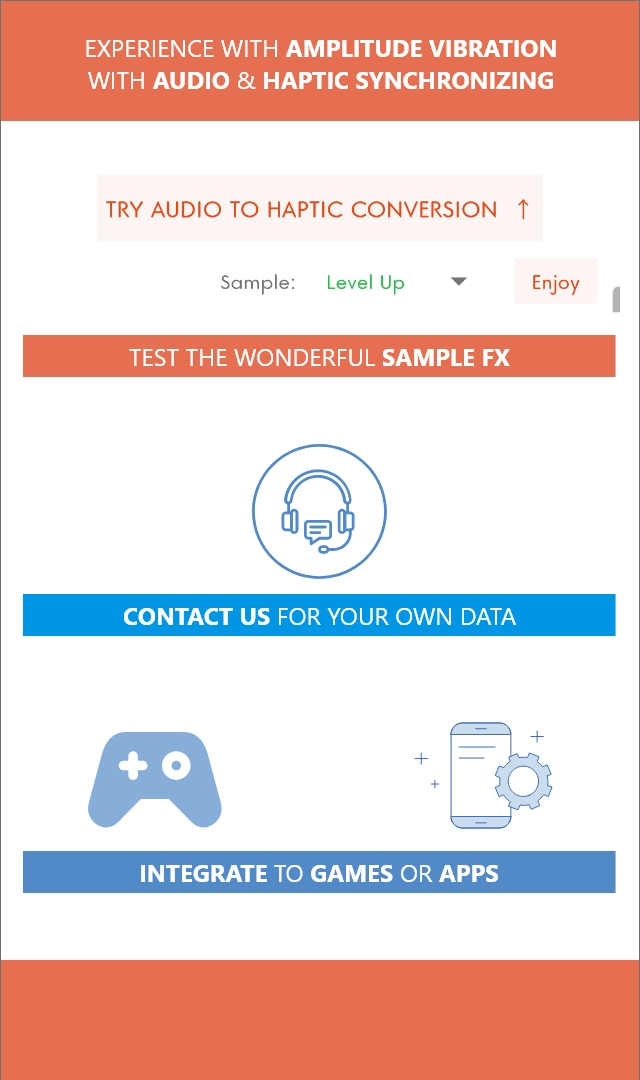

• Audio-to-Vibration: Convert audio data into vibration data so it can be played smoothly in games or apps.

If you want to use your own audio-derived data, check the guide inside the app and contact us.

Summary

Use Haptic to test vibration/haptic capability and apply the results into your own projects. You can also download the latest build, Haptic Test & Pattern Maker 320, to get new features and updates right away.

You can also play custom vibration patterns for phone call contacts (with your permission to read phone state and set up notification bindings).

Haptic Test & Pattern Maker apk is rated Everyone and supports Android devices with API 19+.
