G4 Connect

G4 Connect G4 Connect APK lets you manage a Gatekeeper Hybrid IP Mobile DVR via a Wi‑Fi dongle. Change settings, preview live channels, play and export recordings, download logs, manage users.

G4 Connect

Use G4 Connect together with a Gatekeeper Systems Wi‑Fi Dongle to wirelessly control and use key functions of your Gatekeeper Systems Hybrid IP Mobile DVR. With the connection in place, you can manage the DVR from your tablet device—no cables needed.

• Wireless configuration changes: Update DVR settings remotely.



• Playback and export recorded video: Watch footage stored on the DVR, then export it for use with other systems.
• Download system logs: Retrieve specific log data for review and analysis.
• Live camera preview: View available camera channels in real time directly on your tablet.
• Format DVR storage: Manage and format the DVR’s storage system.
• User access control: Set which users can access the system and what they’re allowed to do.

Features

Seamless Wireless Management

G4 Connect lets you effortlessly manage multiple functions of your Gatekeeper Systems Hybrid IP Mobile DVR using the Wi‑Fi Dongle.

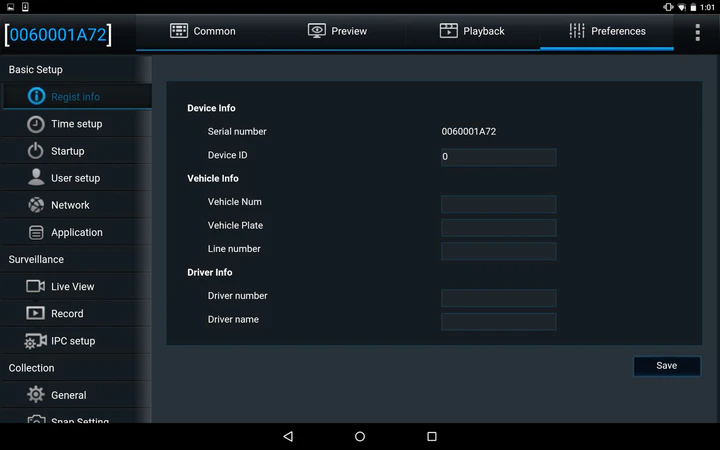

Quick Configuration Updates

Make configuration adjustments in just a few taps, with no need to manually work through the DVR settings.

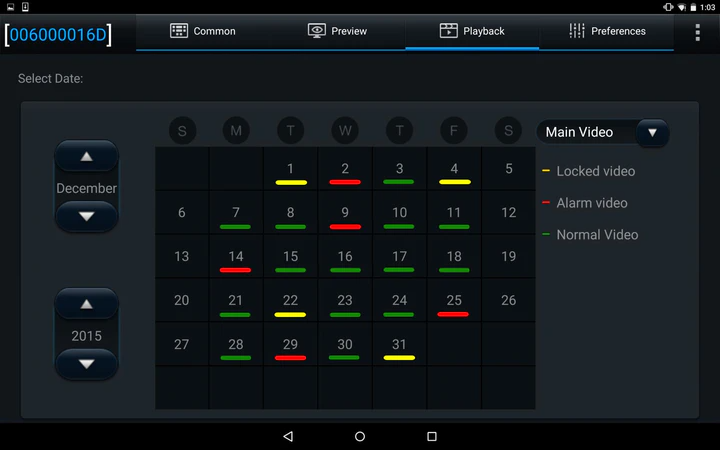

Video Playback and Export

Open and play recordings stored on your DVR, then export the footage so you can share or save important events for use on other systems.

System Logs for Deeper Analysis

Download detailed system logs to examine specific information—helping you understand DVR performance and make better decisions.

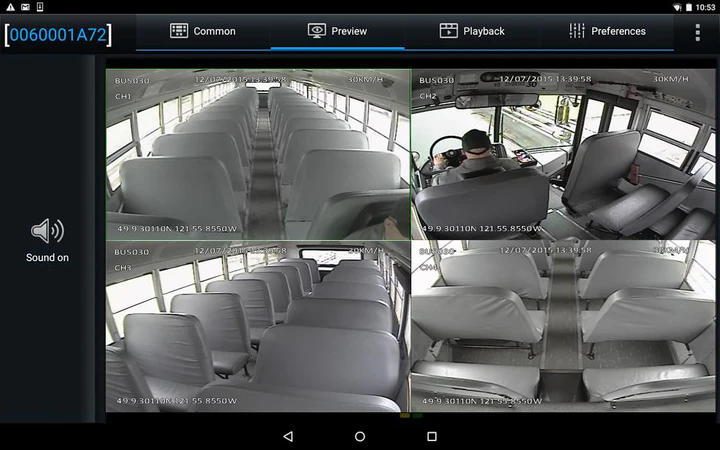

Live Camera Preview on Your Tablet

Get a real-time view of available camera channels directly on your tablet so you can monitor your surroundings from anywhere you have the device with you.

User Access Management

Control security and privacy by customizing user permissions. Grant each user the appropriate access level for your setup.

Setup Notes

To use G4 Connect properly, there is a specific order for installing the G4 Connect Wi‑Fi dongle / SD card combination. The Wi‑Fi dongle is compact, portable, and designed to be plug-and-play, allowing the DVR to connect to Wi‑Fi automatically.

Step-by-Step Installation

• Step 1: Insert the SD card into the SD card slot on the Gatekeeper Systems G4 Connect Wi‑Fi dongle. With the DVR powered on, plug the USB connector from the Wi‑Fi dongle into the USB port on the DVR.

  If you’re using the Gatekeeper Systems G4 Connect Wi‑Fi dongle with a Gatekeeper Systems USB HUB, follow the connection instructions provided with the USB HUB.



• Step 2: On your Android phone or tablet, open the Google Play Store, search for G4 Connect, then download and install it.
• Step 3: Connect the Gatekeeper Systems G4 Connect Wi‑Fi dongle to the DVR.
• Step 4: Open G4 Connect on your Android phone/tablet. You’ll see a login screen.
• Step 5: Tap the Search button in the top-right corner. G4 Connect will look for all connected Gatekeeper Systems DVRs.



• Step 6: Choose the DVR you want to view and/or export video from.
• Step 7: The default credentials are admin for both Username and Password. Enter them, then tap Login.
